Double Rotor Hammer Crusher

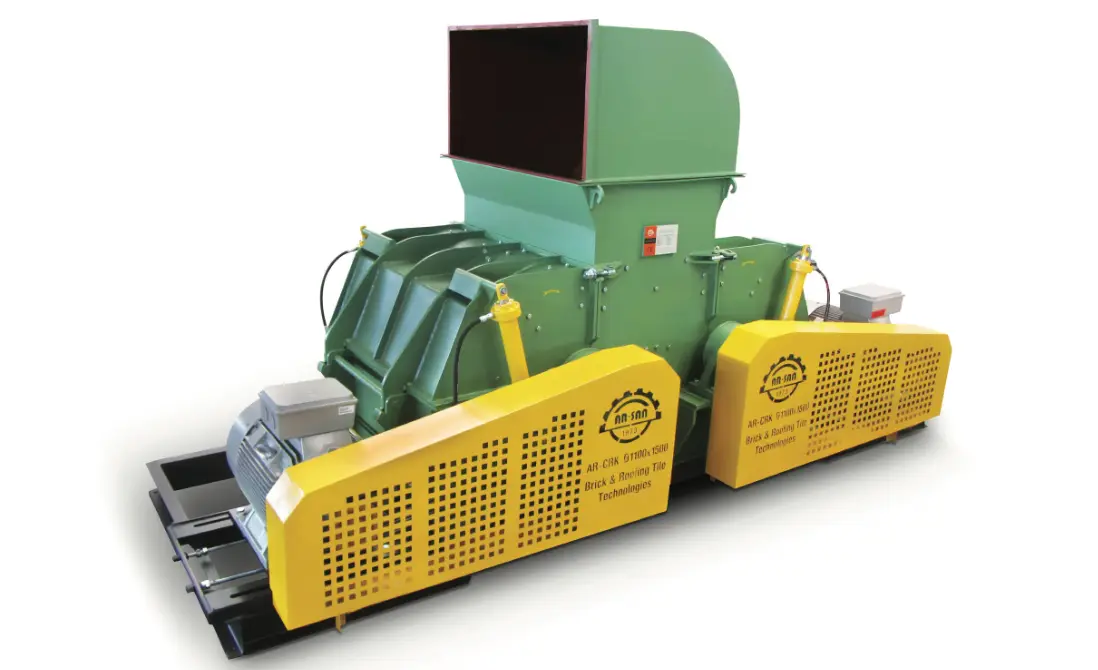

DOUBLE ROTOR HAMMER CRUSHER

This is a machine of raw-material preparation section and used for crushing the material of the size 15-20cm into fine particles 0 – 8 mm. It has double rotors and equipped with moving hammers on the rotors. Exchangeable wear grids are set under the machine in order to control the grain size of the outgoing material. The internal frame of this machine is covered with wear resistant plates and are designed to be replaced very easily and quickly. The material conforms to international safety standards.

TECHNICAL SPECIFICATIONS
SPECIFICATIONS UNIT Ø 800 x 1000 Ø 1100 x 1100 Ø 1100 x 1500
Rotor Width mm 1000 1100 1500
Rotor Speed rpm 750-800 750-800 750-800
Motor Power kW 75&75 90&90 110&110
Capacity t/h 40 - 70 50 - 100 70 - 150

Double Rotor Hammer Crusher Setting

TECHNICAL DIMENSIONS (mm)
MODEL A B C D E
CRK Ø 800 x 1000 4800 1500 16... ... ...
